I’ll never forget the sound of my stomach dropping when I realized I’d unplugged fourteen identical black cables from my high-end AV receiver without marking any of them. It was 11:00 PM on a Friday. I just wanted to hear the roar of a jet engine in Atmos, but instead, I was staring at a copper-filled bird’s nest. I made the classic rookie mistake: assuming I’d remember which wire went where because “I’m the guy who built this.” I wasn’t that guy. I spent half the night tracing lines back to floorstanding speakers tucked behind heavy furniture. It was miserable. Today, I’m going to show you how to avoid that particular circle of hell with a labeling system that costs almost nothing and survives for years.
Labeling Your Cables Stops the Setup Headache Before It Starts
The truth is, a messy rack isn’t just an eyesore; it’s a functional disaster waiting to happen. When you decide to integrate a dedicated power amp into your system, you need to know exactly which pre-outs go where. If you’re like me, you probably think you’ll just “know” your gear, but once those stranded speaker wires are bundled together with zip ties, all bets are off. I once spent an hour troubleshooting why my system was dead, only to find I’d accidentally triggered protection mode because a loose strand from an unlabeled wire was touching the chassis. It was embarrassing. We’re going to fix that today by using a simple, color-coded wrap-around method that makes identifying receiver inputs as easy as looking at a grocery list.
Is a Dedicated Labeling Machine Actually Necessary?
You might be skeptical. Why buy a $50 label maker when a roll of masking tape and a Sharpie are sitting in the kitchen drawer? Well, I’ve tried the “tape flag” method. It’s a disaster. Within a year, the adhesive dries out, the tape falls off, and you’re left with a sticky residue on your cables and no idea which one is which. According to the TIA-606-B standard for industrial labeling, durability and legibility are the two pillars of cable management—and that applies to your living room just as much as a data center. Have you ever reached behind your rack only to have a sticky, nameless piece of tape fall into your hand? Tell me I’m not the only one who has dealt with this sticky mess! We need something that stays put when the gear gets hot.
The Secret Is in the Heat-Shrink or Wrap-Around Vinyl
The pros don’t use masking tape, and neither should you. I switched to clear heat-shrink tubing over printed paper labels years ago, and I haven’t looked back. It looks professional, it won’t peel, and it handles the heat generated behind a power amp that needs serious airflow. It ensures that the next time you go to follow some speaker cable setup tips, you aren’t guessing which wire is which. If you aren’t ready to use a heat gun near your precious gear, don’t worry. I’ve found a “poor man’s” version of this that works nearly as well and takes half the time.
Build a Labeling System That Doesn’t Fail
Before you touch a single wire, you need a plan. Think of your media hub as the brain and your cables as the nervous system. If the nerves are crossed, the brain sends the wrong signals to your speakers. I start by printing small 1/4-inch labels on a standard label maker. I don’t just write ‘Speaker’; I write ‘Front Left – Amp End’ and ‘Front Left – Speaker End’. This redundancy is your insurance policy.

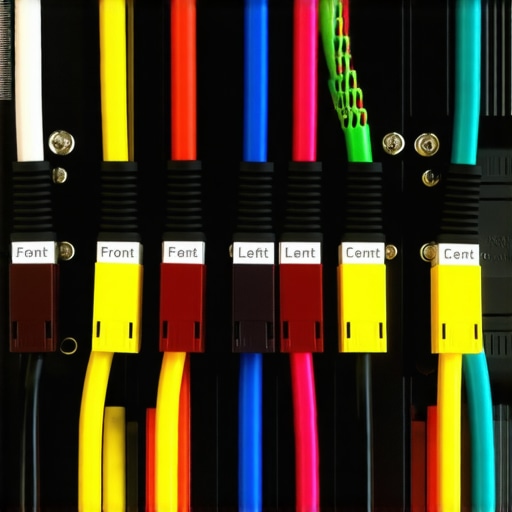

Wrap Your Labels in Protection
Once the sticker is on, it’s vulnerable. Heat, dust, and friction behind a rack will eventually destroy the adhesive. I use clear, 2:1 ratio heat-shrink tubing. You slide a one-inch piece over the wire, place your label underneath, and hit it with a heat gun for three seconds. The tubing shrinks, locking the label in a waterproof, dustproof sleeve that won’t budge. If you’re working with 16-gauge wire, it’s thin enough that the tubing won’t make it bulky.
Use a Color Per Channel
This is where you can get creative. I use a ‘Rainbow Logic’ system: Red for Right, White for Left, and Green for Center. It sounds simple, but when you are squinting into the dark abyss of a media cabinet, seeing a flash of red tells you exactly which side of the room you’re working on. I once spent forty minutes trying to test my speakers for phase issues only to realize I had the positive and negative leads swapped on just one surround speaker. If I had used color-coded boots, I would have caught the polarity error in seconds.
The Double-End Rule for Total Confidence
One of the biggest mistakes I see—and one I’ve made more times than I’d like to admit—is only labeling the end of the cable that plugs into the AV receiver. You think, ‘I’ll know which speaker this goes to when I’m at the other end of the room.’ You won’t. Always label both ends of the run. I remember trying to set up my first 7.2.4 Atmos rig in a cramped basement; three hours in, my subwoofer was trying to play the high-frequency dialogue from the center channel because I’d swapped the RCA leads behind the rack.
Check Your Connectors Before Sealing

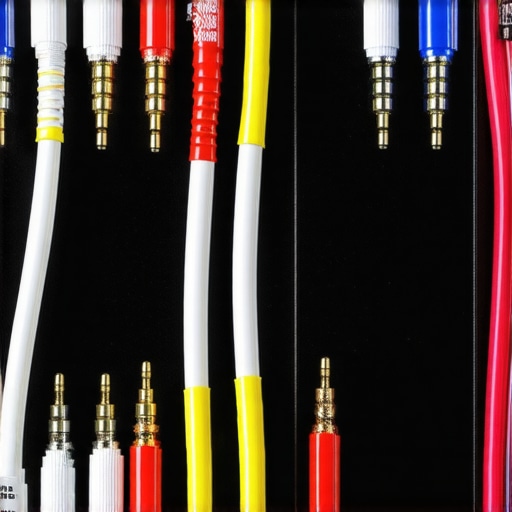

While you’re labeling, look at your terminations. Are you using bare wire? If so, you’re asking for oxidation. This is the perfect time to use spade lugs or banana plugs. Not only do they make the connection more secure, but they also provide a much better surface for your labels to sit near. Using the best type of connector for preventing wire corrosion ensures that your hard work today won’t be ruined by a failing connection three years from now. I once visited a client who thought his system was broken; it turned out his unlabeled, bare-wire connections had oxidized so badly that the signal was dropping out. We re-terminated everything, labeled them properly, and the system roared back to life.
Group Your Cables by Function
Finally, keep your signal cables away from your power cords. Even with the best labeling, if your RCA cables are draped over a power transformer, you’re going to get hum. I use Velcro ties—never zip ties, which can crimp the insulation—to bundle my labeled speaker wires together. This simple separation makes troubleshooting a breeze. When you finally boost your home theater with expert speaker cable setup tips, you’ll realize that organization is the foundation of high-fidelity sound.
Now that you’ve got your labels on, we need to talk about the technical nuances that most ‘snake oil’ salesmen won’t tell you. Everyone says you need to spend a fortune on silver-plated cables for ‘purity,’ but in my experience, why bi-wiring your speakers is probably a waste of money is the first lesson any serious enthusiast should learn. Unless you are running a true bi-amp setup with active crossovers, you are essentially just buying more wire for the same result. According to technical papers from the Audio Engineering Society (AES), electrical characteristics like resistance and inductance at audible frequencies are what truly matter, not the brand name on the cable jacket.
The biggest ‘oops’ factor I see even veterans fall for is trusting their receiver’s ‘Auto-EQ’ button as gospel. I love modern convenience, but why your receiver’s auto-calibration keeps getting the distance wrong is usually due to room reflections that a cheap plastic microphone simply cannot decipher. I’ve seen systems where the calibration set a subwoofer’s distance to 40 feet in a 10-foot room, causing a massive phase cancellation that sucked the life out of the bass. Don’t be afraid to double-check those numbers with a tape measure.
How Much Does Your Wire Gauge Actually Affect the Sound?
People often ask me if they should upgrade to 12-gauge for every single channel. If you’re working with a high-end AV receiver in a standard living room, it is often overkill. In fact, why 16-gauge wire is usually enough for your living room is because the resistance only becomes an audible issue over significantly long distances. However, if you are running lines through an attic to a far corner of the house, the trouble with using thin-gauge wire for long speaker runs is real; it can actually drop the damping factor of your amplifier, leading to ‘mushy’ bass that lacks impact.
The real secret to high-fidelity sound isn’t the price of the wire, but where you put it. I have seen enthusiasts spend thousands on cables only to ignore the problem with running speaker wire next to air ducts or high-voltage power lines. This proximity can introduce electromagnetic interference (EMI) that no amount of fancy labeling will fix. If you must cross a power cord, do it at a 90-degree angle to minimize the hum. Have you ever fallen into the ‘expensive cable’ trap or had your auto-calibration give you a totally bizarre reading? Let me know in the comments!
Once you’ve got everything labeled and connected, the real work starts: keeping it that way. I’ve seen $10,000 systems sound like a garage sale setup after three years of neglect because the owner forgot about thermal health. Heat is the number one silent killer. If you’re tucking your gear away, you need to learn how to keep your receiver cool in a closed cabinet because thermal throttling is real. I personally use active cooling fans—the kind with thermal probes—to pull air away from my power amp essentials. According to technical documentation from Middle Atlantic Products, a leader in rack management, every 10-degree rise in temperature above 85 degrees can significantly reduce the lifespan of your electronics.
How do I maintain my home theater performance over the long haul?
Maintenance isn’t a chore; it’s a ritual. Every six months, I do a ‘tighten and clean’ sweep. I unplug my speaker wires and look for that dull, dark tint on the copper that signifies loss of conductivity. If I see it, I use the simple fix for speaker wire oxidation by trimming back the ends or using a chemical contact cleaner like DeoxIT D5. This stuff is magic for how to clean a scratchy volume knob without opening the unit. It chemically bonds to the metal to prevent further corrosion, ensuring that the signal flow remains unimpeded through your connectors.

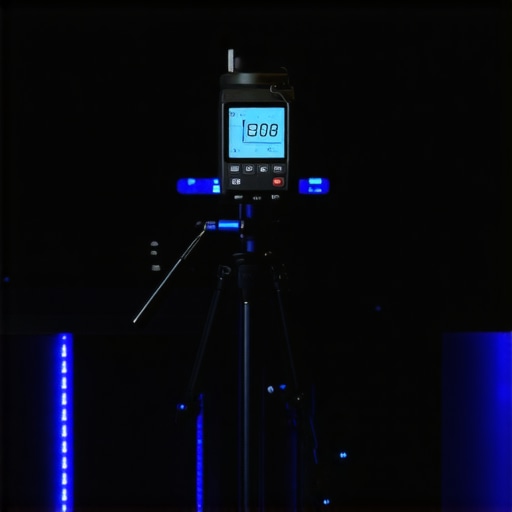

Beyond cleaning, you need the right tools to verify your work. I used to use a smartphone app for my speaker levels, but I quickly realized how inaccurate they are, especially for subwoofers. Now, I always recommend learning how to use a sound pressure level meter for manual calibration. A dedicated SPL meter is far more sensitive to the low-frequency peaks that ruin your soundstage. I follow the Dolby Atmos Home Theater Installation Guidelines religiously, which emphasize that even a five-degree variance in speaker angle can collapse the 3D bubble. Looking ahead, I believe we are moving toward a world where ‘Auto-EQ’ isn’t just a static measurement but a continuous AI-driven adjustment. We are already seeing this in high-end processors that adjust the sound signature in real-time based on the number of people in the room. Even the hardware is shrinking; the shift toward why GaN technology is changing small form factor power amps means we’ll soon have the power of a 50-pound monster in a box the size of a paperback book. For now, take one hour this weekend to recalibrate your levels manually using a real meter—you’ll be shocked at the detail you’ve been missing.
The Hard-Won Secrets of a Cable Management Obsessive
After years of wrestling with wiring, I’ve realized that the ‘perfect’ setup is never truly finished. One lightbulb moment for me was discovering that leaving a ‘service loop’—an extra eighteen inches of slack—is better than having perfectly tight cables. It allows you to pull the gear out to fix speaker wire oxidation or swap a component without disconnecting the entire rack. Another lesson? Never trust your memory for polarity. Even if you think you’ve got it right, always double-check the ‘positive’ stripe on your speaker cables at both ends before you heat-shrink those labels into place. Finally, remember that labeling isn’t just for you; it’s for the person—or future version of you—who has to troubleshoot a system failure at 9:00 PM on a movie night.
A Few Tools That Saved My Home Theater Life
I don’t believe in overcomplicating things, but these three items are permanent fixtures in my toolkit. First, the Dymo Rhino labeler is superior to consumer models because its labels are designed for industrial heat and won’t peel off behind a warm power amp. Second, I’ve moved away from standard zip ties in favor of Velcro Brand One-Wrap; it’s essential for bundled cables because it prevents the ‘crimping’ that can happen with plastic ties. Lastly, a simple digital multimeter is the only way to truly verify continuity. If you’re ever unsure if a wire is broken inside the wall, a quick resistance check saves hours of guessing. I also recommend you stop using your TVs internal apps for high bitrate surround sound and switch to a dedicated streamer, which often simplifies your HDMI cable management significantly.
Ready to Reclaim Your Media Hub
Getting your wires under control isn’t just about making the back of the TV look pretty—it’s about the peace of mind that comes with knowing exactly how your system works. When you use the best way to terminate speaker wire and pair it with a logical labeling system, you’re building a foundation for years of high-fidelity enjoyment. You’ve invested in the best AV receivers, so give them the clean, organized environment they deserve to perform at their peak. What is the one cable in your current setup that drives you the most insane or has caused the biggest headache? Let me know in the comments below!
